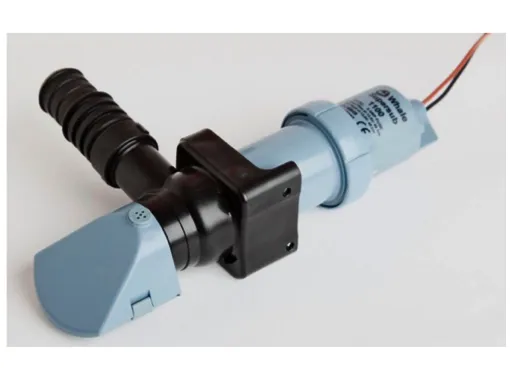

The Whale Supersub 1100 is a low profile electric bilge pump suitable for narrow bilges or where space is restricted. The Supersub 650 has a flow capacity of up to 3960 ltrs (1050 US gals) per hour and the low profile design leaves the bilge almost dry depending on installation. With a multi-position outlet and long caulked wires installation is quick and simple. The Supersub 1100 is also easy to maintain with a snap fit strainer easily removed for cleaning.

Key Features

• Easy installation - Outlet and pump body rotate to suit your installation
• High performance
• Efficient operation - Very low power consumption
• Easy to clean - Snap fit assembly
• Low profile strainer - Leaves the bilge almost dry
• Integrated bleed ball - Prevents airlocks
• Long term reliability - Comes with extra long wire

Techy Bits, Dimensions & Weights

• Open Flow Rate : 1050 US GPH (66 ltrs/min) @ 13.6V DC
• Flow Rate @ 1 m Head : 750 US GPH (47 litres/min)
• Nominal Voltage : 12 V DC, 24V DC
• Current Draw : !2v 4.3Amps, 24v 2.2 amp
• Recommended Fuse Size: 12v 5 Amp, 24v 2.5 Amp
• Wire Size (Caulked Wire) : 1.5mm (16 AWG)
• Weight : 400g (0.9 lbs)
• Hose Connectors : 25mm (1") 28mm (1 1/8") stepped ports
• Materials : Pump Body : Polypropylene, High Temperature ABS,. Locking Ring : Acetal, Impeller : Glass Filled Polypropylene Seals, Nitrile , Fasteners : Stainless Steel

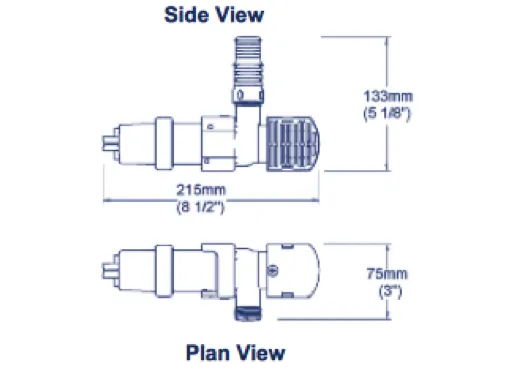

• Overall Height : 133mm (5 1/8")
• Overall Width : 75mm (3")
• Overall Length : 215mm (8 1/2")

Models

• Supersub 1100 12v
• Supersub 1100 24v
