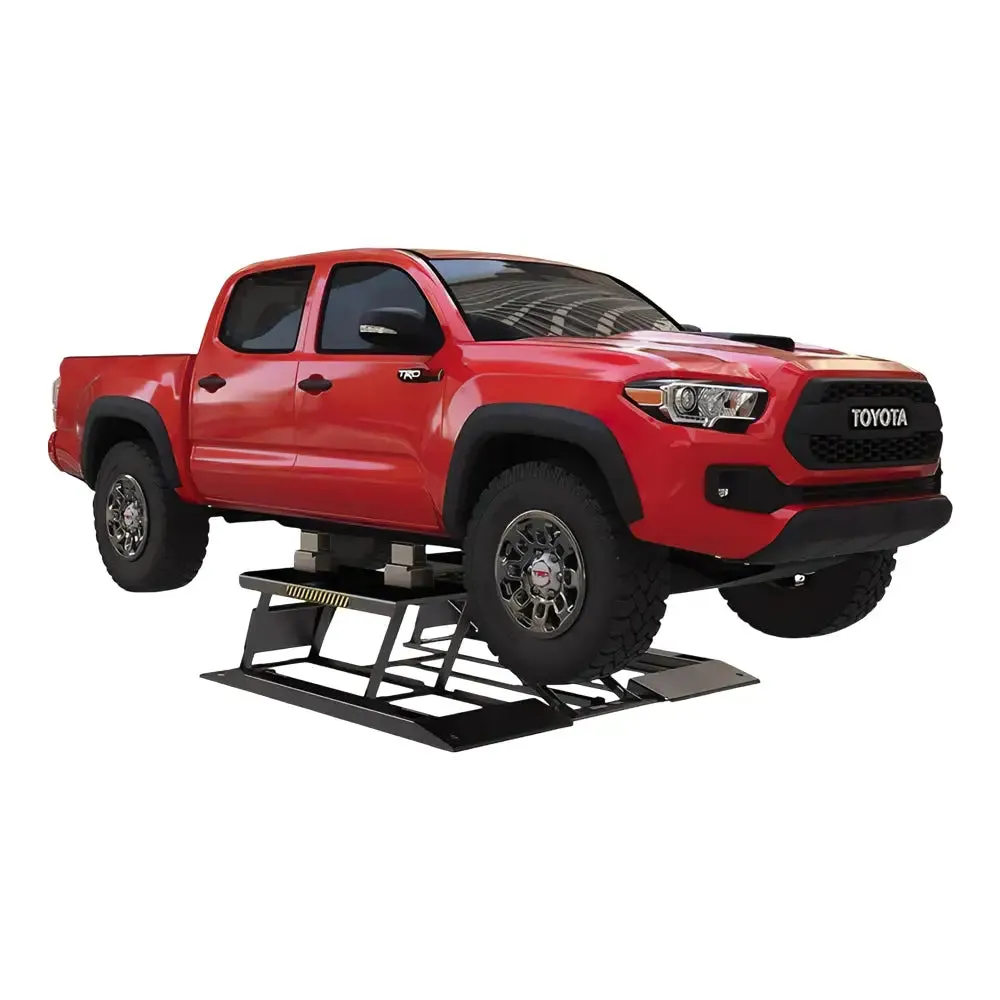

Name: BendPak LR-10000 Low-Rise Car Lift, 10,000 lb - 5175232
SKU: 64175

Product Details ＋

Ditch the jacks and stands! The Bend-Pak LR-10000 low-rise lift offers a smarter, 10,000 lb. lifting capacity for even heavy vehicles. This space-saving lift tackles tire changes, brake repairs, and more with ease. Its low-profile design fits most garages, while single-point safety, dropped crossbar, and rugged steel frame ensure safe, efficient operation. Work faster with the strongest 10,000 lb. lift in its class, featuring diamond-plated ramps, multiple locking positions, and a hands-free safety lock. Upgrade your workspace and leave the jack struggles behind.

Features:

Work Faster with the Top-Selling LR-10000 Low-Rise Lift
10,000 lb. Lifting Capacity - Perfect for Trucks & SUVs
Low-Profile Height - Fits Most Vehicles & Garages
Single-Point Safety Release - Easy & Safe Operation
Dropped Crossbar - Easier Suspension Work
Rugged Steel Channel Frame - Built to Last
Industrial-Grade Hydraulic Cylinder - Reliable Performance
Strongest 10,000 lb. Low-Rise Lift in its Class
Diamond Plated Approach Ramps - Prevent Slipping
Multiple Locking Positions - Increased Productivity
Hands-Free Safety Lock Release - Safe & Convenient
Powder Coat Finish - Durable & Long-Lasting
Includes Installation & Maintenance Materials

Specs:

Material: HD Steel
Color: Gray
Lifting Capacity: 10,000 lbs. (4,545 kg)
Max Capacity / Front Axle: 5,000 lbs. (2,273 kg)
Max Capacity / Rear Axle: 5,000 lbs. (2,273 kg)
Lifting Height: 23in (584 mm)
Lifting Height Blocks: 32in (813 mm)
1st. Lock Position: 14in (356 mm)
2nd. Lock Position: 18in (457 mm)
3rd. Lock Position: 20.75in (527 mm)
4th Lock Position: 22.75in (578 mm)
Overall Pad Length: 53in (1,346 mm)
Overall Length: 82.65in (2,094 mm)
Overall Pad Width: 24in (610 mm)
Overall Width: 85in (2,159 mm)
Lowered Height: 4.5in (114 mm)
Lifting Time: 35 seconds
Motor: 208-230VAC / 50-60Hz / 1 Ph
Shipping Weight 1,332-lbs. (604 kg)
Shipping Dimensions 88in x 85in x 24in (2,235 mm x 2,159 mm x 609 mm)

Ref No.
LR-10000
BENDPAKLR-10000
